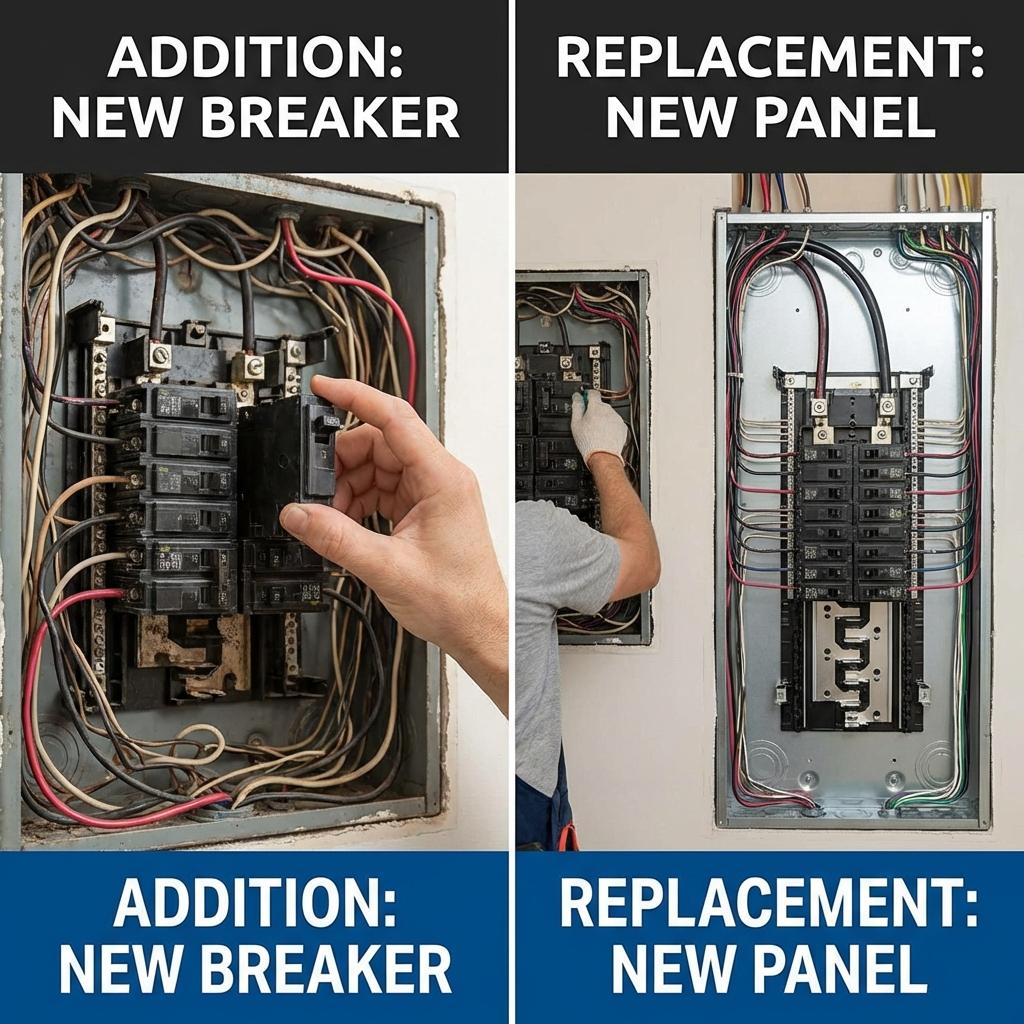

Adding Circuits vs Full Panel Upgrade: Which Do You Need?

When your electrical system can't keep up with your needs, you have two main options: add individual circuits to your existing panel or upgrade to a larger panel entirely. The right choice depends on your current setup, your goals, and your budget. This guide helps you understand when each option makes sense.

When Adding Circuits Makes Sense

Adding circuits to your existing panel is the simpler, less expensive option when:

Your Panel Has Available Space

Most residential panels come with a set number of spaces for circuit breakers. A 200 amp panel typically has 40-42 spaces, while a 100 amp panel usually has 20-24 spaces. If your panel has empty spaces, adding new circuits is straightforward.

Your Service Amperage is Adequate

Having available spaces doesn't mean you have available capacity. A 100 amp panel with 10 empty spaces still only provides 100 amps. However, if your load calculation shows you're not approaching your panel's capacity, adding circuits is typically fine.

You're Adding One or Two Circuits

For projects like adding a dedicated circuit for a home office, a new bathroom exhaust fan, or additional outdoor outlets, adding individual circuits is usually the right approach.

Cost of Adding Circuits:

• Simple circuit addition (short wire run): $150-$300
• Standard circuit with new outlet: $200-$400
• 240V circuit for appliance: $300-$600
• EV charger circuit (40-60 amp): $400-$800

When a Full Panel Upgrade is Necessary

Sometimes adding circuits isn't enough, and a complete panel upgrade is the better—or only—solution:

Your Panel is Full

If every space in your panel is occupied (or worse, has double-tapped breakers), you need more capacity. While tandem breakers can sometimes add circuits without adding spaces, they're not always code-compliant or appropriate for your panel.

Your Service is Undersized

If you have 100 amp service and want to add an EV charger (40-60 amps), a hot tub (50 amps), or upgrade your HVAC system, you'll likely exceed your capacity. In these cases, upgrading to 200 amp service makes more sense than adding circuits you can't actually use.

Your Panel is Outdated or Dangerous

If your panel is a Federal Pacific, Zinsco, or other problematic brand, you should replace it regardless of whether you need additional circuits. Similarly, panels with rust, corrosion, or signs of overheating need replacement.

You're Planning Multiple Additions

If you're adding an EV charger now, planning a kitchen renovation next year, and considering a home addition in three years, upgrading your panel now makes more financial sense than paying for multiple service calls.

Code Requirements Have Changed

When you upgrade your panel, current electrical codes apply. This means adding AFCI protection to bedrooms and living areas, which provides significant safety benefits. If your home lacks these protections, an upgrade brings your entire system up to modern standards.

The Math: Adding Circuits vs. Upgrading

Let's look at a real-world example:

Scenario: Adding an EV Charger to a 100 Amp Panel

Option 1: Just the EV Circuit

• EV charger circuit installation: $500
• Problem: Your 100 amp panel may not have capacity
• Possible solution: Install smaller charger or implement load management
• Risk: Panel upgrade still needed later

Option 2: Panel Upgrade + EV Circuit

• 200 amp panel upgrade: $3,500
• EV circuit included with upgrade: $200 additional
• Total: $3,700
• Benefit: Capacity for future needs, modern safety features

If you'll need the panel upgrade eventually anyway, doing it now saves you from paying twice for labor, permits, and utility coordination.

Load Calculation: The Key to Decision-Making

A proper load calculation determines whether your existing service can handle additional circuits. Here's a simplified version of what electricians calculate:

Major Electrical Loads:

• Central air conditioning: 30-50 amps
• Electric range: 40-50 amps
• Electric dryer: 30 amps
• Electric water heater: 30 amps
• EV charger: 40-60 amps
• Heat pump: 30-40 amps
• General lighting and outlets: 20-30 amps

When you add up these loads with appropriate demand factors, you'll see whether your 100 amp service has room for additions or whether you need to upgrade.

Hybrid Solutions

Sometimes the best answer is a combination approach:

Subpanel Installation

If your main panel is adequately sized but full, a subpanel can provide additional circuit spaces without replacing the main panel. Subpanels are fed from the main panel and are ideal for:

• Garage workshops
• Finished basements
• Home additions
• Outbuildings

Cost: $800-$1,500 for subpanel installation, depending on size and location.

Load Management Systems

For homes at capacity that want to avoid full upgrades, load management systems can intelligently share power between devices. For example, an EV charger can pause when the dryer runs, then resume when it stops. These systems typically cost $200-$500 plus installation.

Questions to Ask Your Electrician

When consulting with an electrician about your options, ask:

1. How many spaces are available in my current panel?
2. What is my current electrical load versus panel capacity?
3. Will adding [specific item] exceed my service capacity?
4. What would it cost to add just the circuits I need?
5. What would a full panel upgrade cost?
6. What's the cost difference, and what additional benefits come with the upgrade?
7. Are there code-required updates that would apply with either option?

Our Recommendation

At AJ Long Electric, we always provide honest assessments. Here's our general guidance:

• Add circuits if your panel is less than 15 years old, has available capacity, and you're only adding 1-2 circuits
• Upgrade your panel if your panel is older than 25 years, you have a dangerous panel type, you're planning multiple additions, or you're at or near capacity
• Consider a subpanel if you need more spaces but have adequate service amperage

Not sure which option is right for you? Contact AJ Long Electric at (703) 555-0123 for a free assessment. We'll evaluate your current system, understand your goals, and recommend the most cost-effective solution.
